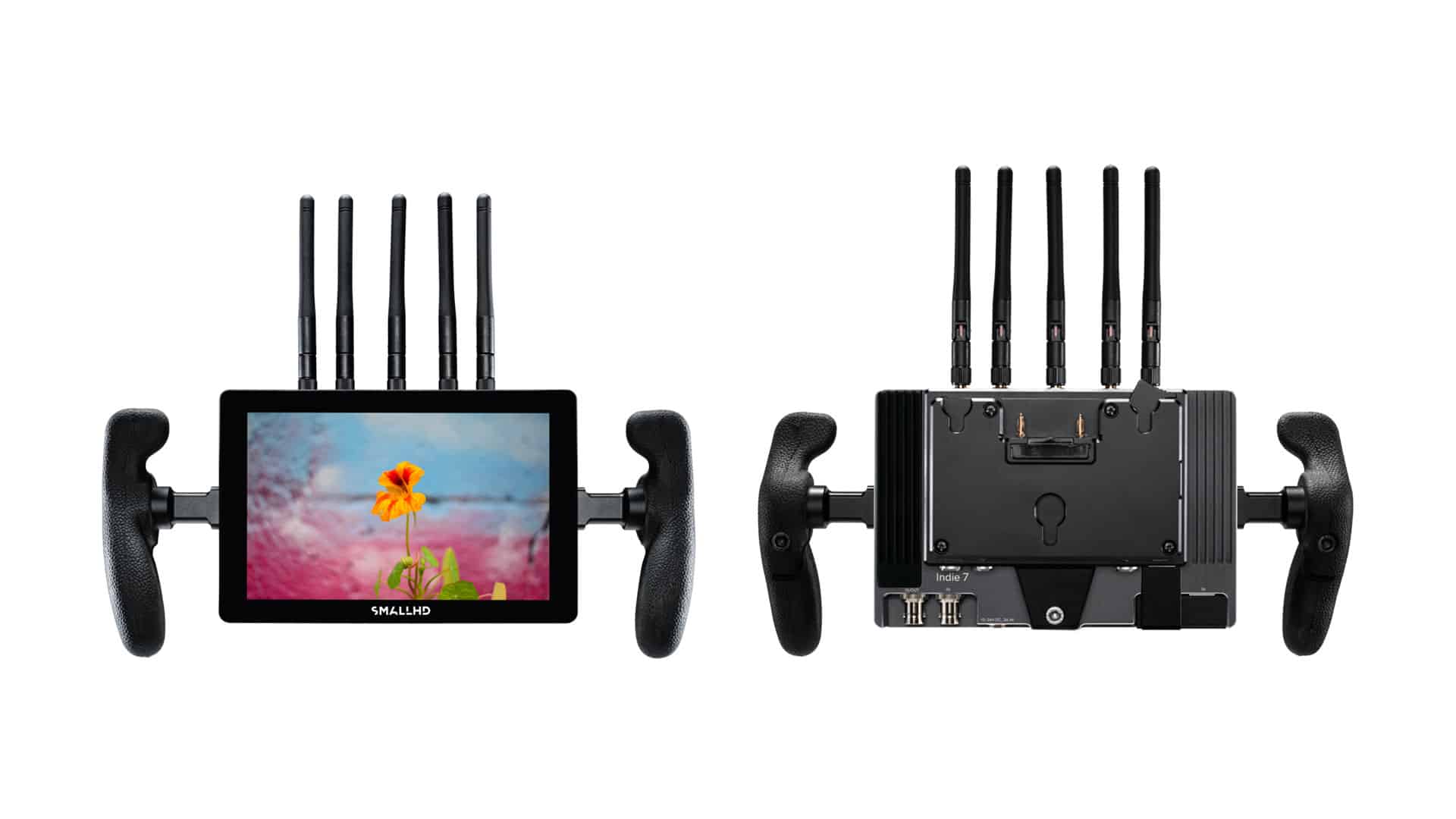

SmallHD Indie 7 Wireless Monitor

SmallHD’s lightweight entry level professional touchscreen monitor. Featuring hyper-responsive touchscreen technology with 1000 nits of brightness for daylight visibility. Housed in a lightweight, thin,and rugged aluminium chassis designed for heavy production use.

Screen Size 7.0″ / 17.78cm

Resolution 1920×1200

Contrast Ratio 1000:1

Colour Space 100% Rec 709

Colour Depth 10-bit Processing

Brightness 1000nits

Backlight Type White LED

Panel Type IPS Touchscreen

Aspect Ratio 16:9

Pixel Density 323

SDI Video Inputs 1x 3G SDI In, 1x 3G SDI In/Out

SDI Video Outputs 1x 3G/HD-SDI Out

HDMI Video Input 1x HDMI In

HDMI Video Output 1x HDMI Out

Power Inputs 1x Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

1x L-Series Standard Battery Plate (included)

1 x GM/VM Batt.Plate (sold as accessory)

Data I/O 1x SD Card Slot

1x USB 2.0 Micro-B receptacle

Audio 1x 3.5mm Stereo Headphone Jack

Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max

Consumption 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @ 7.2V battery, 1.4A @ 12V barrl, 0.7A at 24V barrel)

Power Supply Recommend DC 12~15V at ~2.5 amp or greater

Overload Protection DC input: Reverse Polarity

Operating Temperature 30 F – 100 F

Storage Temperature 0 F – 120 F

Mounting Points 4x 1/4-20 Mount Points (Left, Right, Bottom, and Back)

Construction Anodized Aluminium Chassis

Weight (monitor alone) 18.9 oz

Weight (Packaged) 26 oz

Size (HxWxL) 4.67in X 1.32in X 7.09in

SmallHD Indie7 Monitor
Teradek Bolt 4k RX module
Teradek Bolt LT 750 4k wireless transmitter
Teradek Bolt 4k Antenna x7
Noga arm
